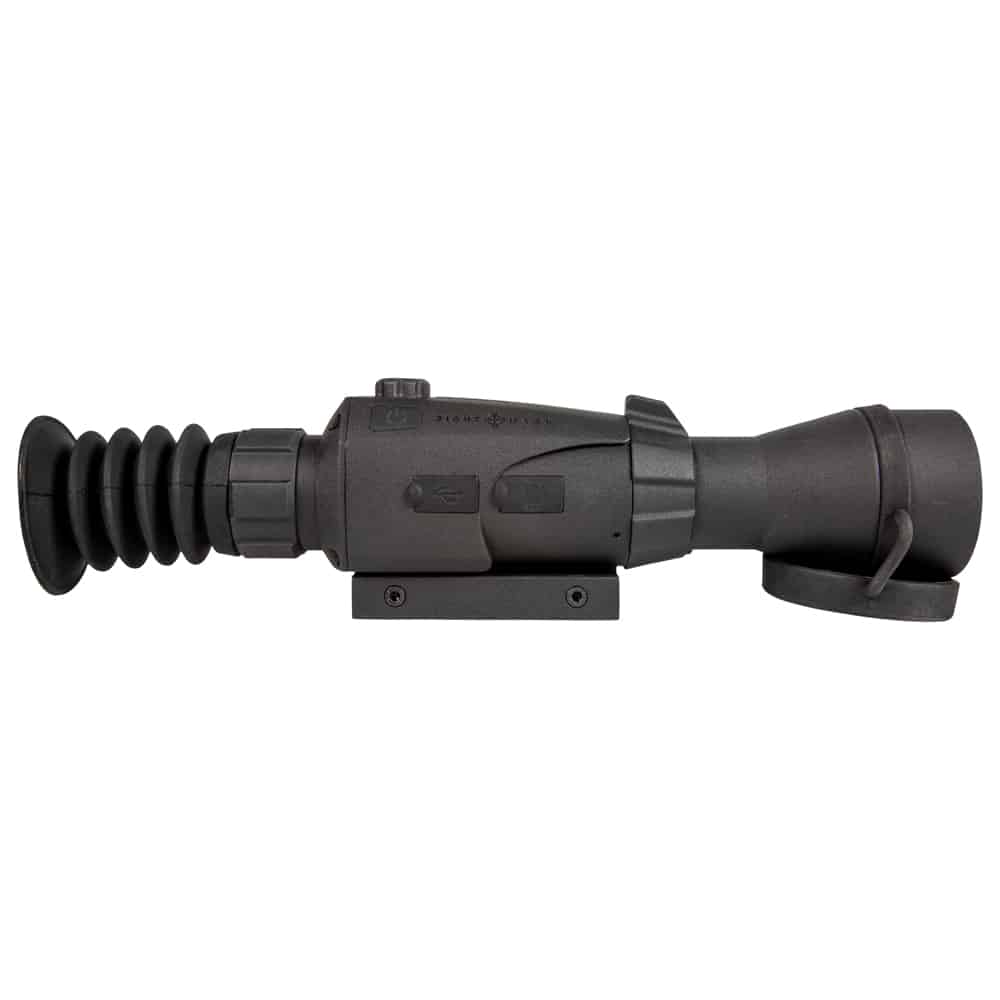

Sightmark Wraith 4K Max 3-24×50 Digital Riflescope

Rated 0 out of 5
(be the first to review)


Only 1 Available!

SKU: NGI-SIGHTMARK-WRAITH 4K MAX Categories: , , Tags: , , Brand:

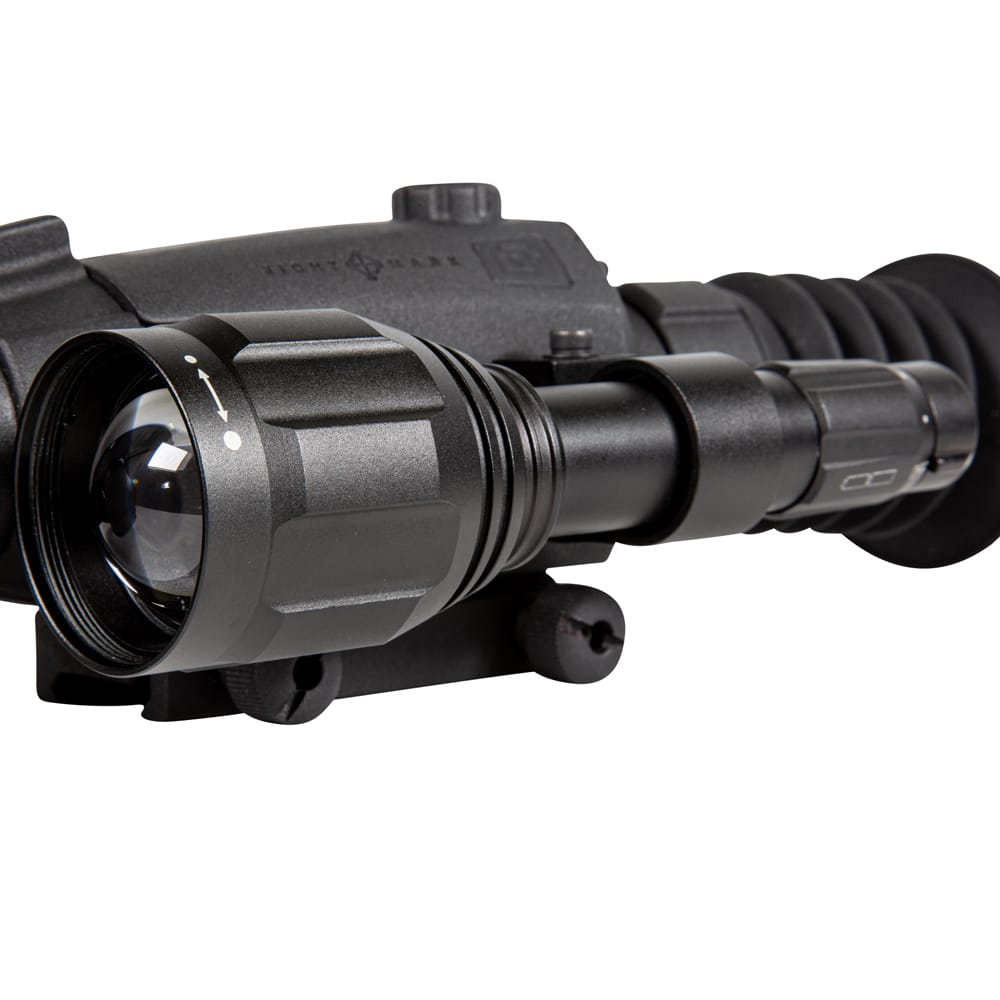

Sightmark’s Wraith 4K Max Digital Riflescope is the ideal optic for serious hunters and marksmen. Its enhanced ultra-high definition 4000×3000 night vision sensor detects objects up to 300 yards away at night, and its 1280×720 HD full color display resolution is crystal-clear. The Wraith 4K’s 3-24x digital magnification gives users precision shots at multiple distances, and it provides 10 reticle options in 9 different reticle colors. The Wraith 4K also boasts an upgraded, detachable 850nm IR LED illuminator, built-in 4K UHD video recording with audio, and a rechargeable internal battery that provides power for up to 8 hours.


  • 4K digital imaging
  • Daytime color mode
  • Night vision mode
  • Built-in 4K UHD video recording with audio
  • 8x digital zoom
  • 10 reticle options with 9 colors
  • Power input
  • Rechargeable internal battery
  • 4 weapon profile saves



Product Specifications

Type of Sensor CMOS sensor
Sensor resolution, pixels 4000 x 3000
Display Type LCOS
Display Resolution, pix. 1280×720
Built-in Video Recorder Availability Yes with Audio
Maximum memory card supported, Gb 256
Format of video clip mp4
Resolution of video clip 1080/720
Format of photo files JPEG
Resolution of photo files 4K/1080/720
Magnification 3 – 24 x
Diameter, Lens, mm 50
Digital Zoom 1-8x
Lens Focus, mm 60mm
Relative aperture, D/f' 1.2
Field of view, °, horizontal 6
Field of view, ft@100yd 31.5
Minimum focusing distance, ft 16.4
Eye Relief in / mm 2.7 / 60
Diopter Adjustment +/-5
Emitter LED
IR Wavelength 850nm
Equivalent IR Power, mW 2,500
Battery Life (with IR) 90 Minutes on high (2x CR123A Battery Type for IR)
Night Vision Detection Range 200 / 183 yd / m
Power Supply 6 v
Battery Type Internal
Battery life, hours 5 hours recording, 8 hours no WiFi or recording
External Power Supply 5V via USB
Windage & Elevation click value .3 MOA
Elevation Range of Adjustment 60 MOA
Windage Range of Adjustment 227 MOA
Number of Preloaded Reticles 10
Colors Black, white, red, blue, green, cyan, orange, yellow, magenta
Body Material Aluminum
Accessory rail mount Picatinny
Operating Temperature, F° -4 to 140
Waterproof Rating IP55 – water resistant
Nitrogen Purged No
Shockproof Yes, 3ft
Maximum Recoil .308
Tube size, in/mm N/A
Length, in 12
Width, in 1.875
Height, in 3
Weight, oz 34.6

Additional information

Weight 4 lbs
Dimensions 12 × 12 × 10 in

Include a Free Thermal Remote Battery
