AB Night Vision RNVG Dovetail Extension

Rated 0 out of 5
(be the first to review)

$35.00

RNVG DOVETAIL EXTENSION ONLY

(includes mounting screws and Allen wrench for installation)



In Stock

SKU: AB-RNVG123-DT-EXT-BLK Categories: , , Brand:

Description

*** DOVETAIL EXTENSION ONLY FOR USE WITH RNVG HOUSINGS EQUIPPED WITH THE STANDARD DOVETAIL–THIS LISTING IS FOR THE DOVETAIL EXTENSION KIT ONLY, RNVG IS NOT INCLUDED***

***This is an optional retrofit and is only recommended if you cannot achieve comfortable eye relief with the standard dovetail attachment and a properly sized and configured helmet. Contact us for details sales@tnvc.com***

***New TNV and NGI/RNVGs shipping after July of 2021 will have the dovetail extension included as standard, you DO NOT need to purchase the dovetail extension if your system has not yet been delivered***

The AB Night Vision RNVG, which forms the basis of the TNVC TNV and NGI/RNVGs is an excellent and rugged design and represents one of the best values in the current NV market.

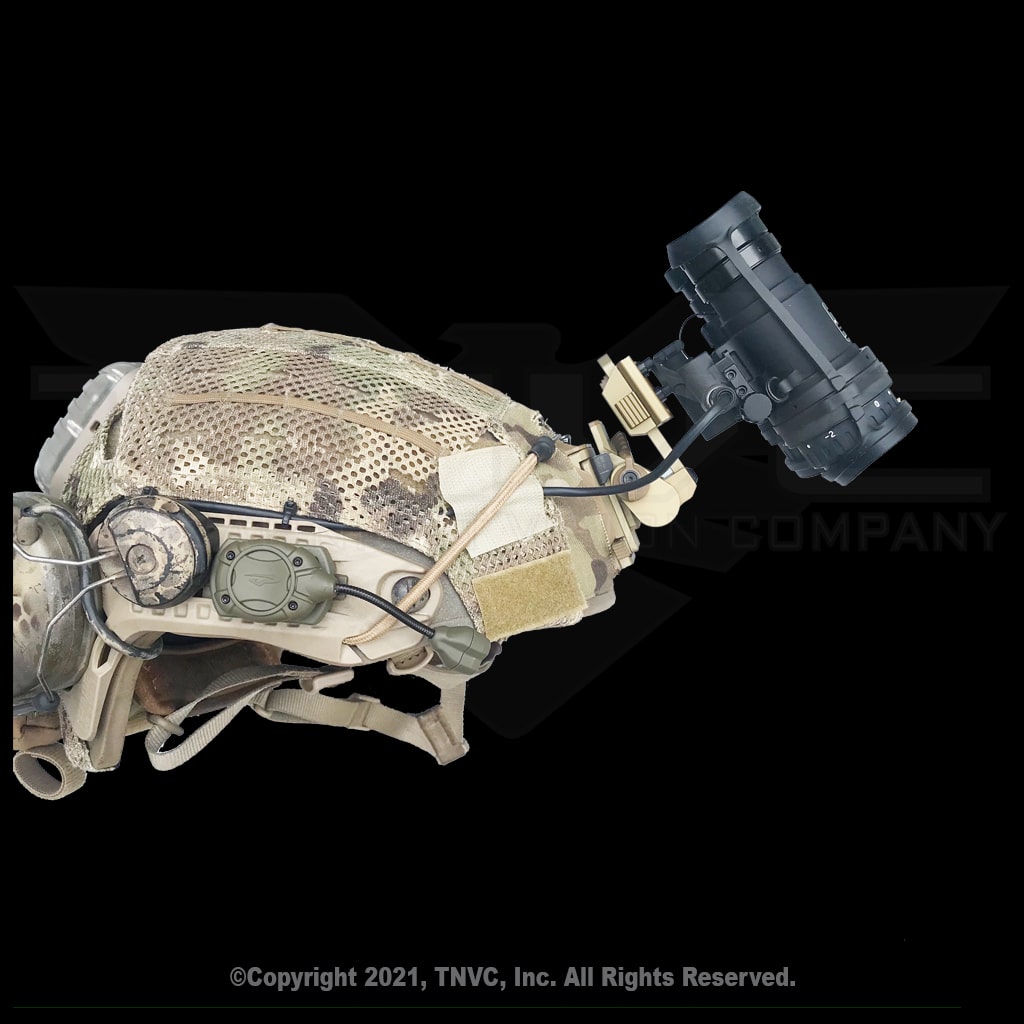

The new RNVG spacer improves upon the Human Factors Engineering (HFE) of the RNVG, and moves the dovetail mounting point approximately 0.80” up and 0.80” forward positioning it better to allow fewer users to have to max out their mount adjustments or fiddle with their helmets as much for proper positioning.

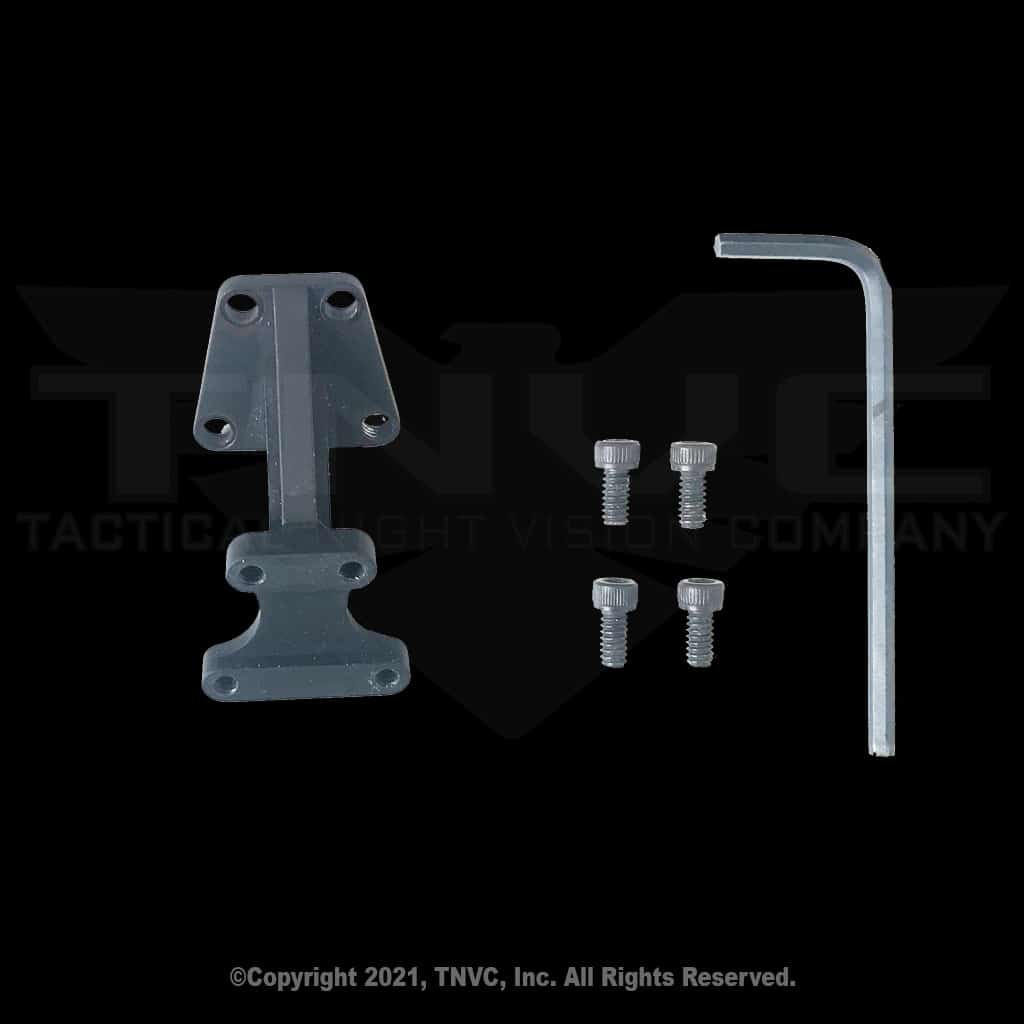

Installation is very simple: To assemble the RNVG Dovetail Extension, you will remove the dovetail screws on your RNVG, screw down the RNVG Dovetail Extension taking care to ensure that the battery cap retention lanyard is captured under the Dovetail Extension, and then screw your dovetail to the RNVG Dovetail Extension.  Four screws (the four original mounting screws are re-used for installation) and a 3/32″ Allen wrench are included in the package.

Like many fixed bridge goggle systems, the RNVG is based on the basic layout and architecture of the AN/AVS-6/9 ANVIS systems, however the mounting interface of ANVIS systems is much different than the more common and well known BNVS or “dovetail” mounting configuration such as is used with the RNVG.

In its original configuration, the RNVG’s dovetail mounting shoe was attached directly to the system bridge, which created a very compact goggle, however, it had the unintended result of requiring many users to max out the adjustments of their dovetail mounts, and for a very small percentage of users (<10%), made it difficult to adjust properly for appropriate eye relief.

While the original RNVG dovetail configuration works for the vast majority of users, continual refinement is always worthwhile, and the RNVG dovetail extension spacer places the dovetail in a similar location to devices such as the AN/PSQ-36 FGE and GPNVG.

While it does raise the stowed profile slightly and push the CG out a little further, it does not significantly exceed that of the above-mentioned systems or devices like the legacy AN/PVS-15, or BNVD/BNVD1531 when stowed for quick use (obviously articulating systems can reduce the stowed profile by splaying the optical pods to the side, however they then require an extra step to deploy for use).

The RNVG dovetail spacer is an HFE-driven refinement to the basic RNVG design that shifts the dovetail mounting location and brings it closer in line with goggles such as the AN/PVS-31A BNVD, AN/PSQ-36 FGS/FFS-PI/FGE, and GPNVG. While the RNVG dovetail spacer does slightly increase the stowed profile of the RNVG, it is no greater than that of systems such as the legacy AN/PVS-15, FGE, GPNVG, or other similar systems.





Export of Night Vision Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR). It is a major crime to ship or carry US manufactured night vision devices outside the borders of the United States, punishable by fines and prison sentences. Ignorance of these regulations will not hold up in court. By purchasing night vision equipment from TNVC, you attest that you will not attempt to export or carry this night vision equipment outside the borders of the United States. Also, it illegal to allow a non-US Citizen to look through US Gen3 Night Vision Devices, even on US soil. Again, this is a crime punishable by fines and prison sentences.

Additional information

Weight 1 lbs
Dimensions 4.5 × 2.5 × 2.5 in
